Description
Shop the best gear shaper cutter online for precision gear manufacturing. High-quality cutters for internal, external & helical gears. Order now at best price!
We design Shank type Gear Shaper cutters according to the Component or gear data offered by client for standard or non standard pitches for Involute gears, Splines, Spur gears, Chain sprockets pitch, Timing pulleys, Involute forms.
We supply gear shaper cutters in Raw material HSS M2, M35 or ASP30 which are most commonly used with respect to the hardness of gear (Rockwell / Brinell) to cut. Often times, there is huge number of gears of quantity which have to be cut by gear manufactures
Shaper cutter types

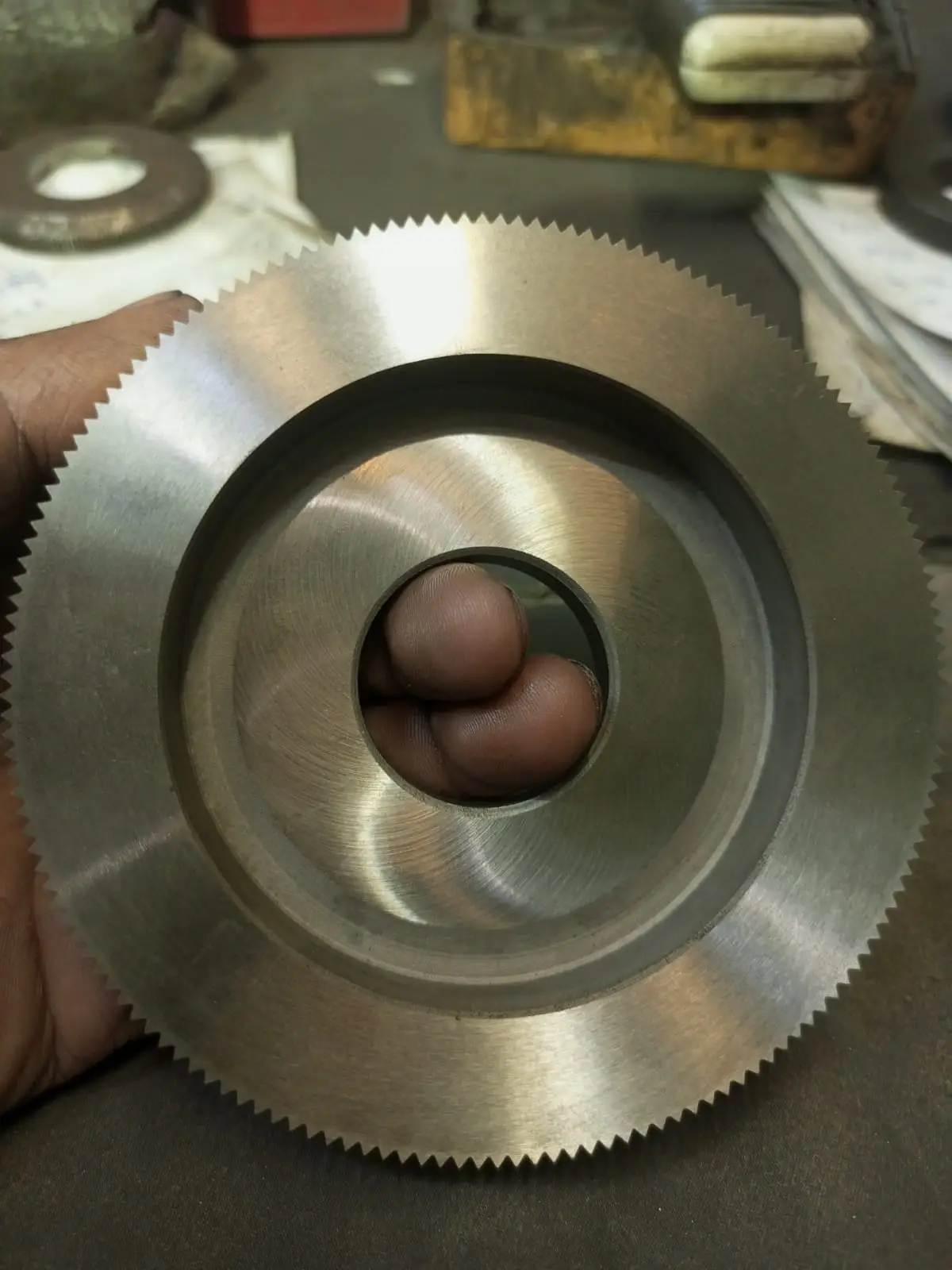

Disc-type
Deep counterbore-type
Shank-type
Sykes/Herringbone sets
Cutting Forms for sprockets,splines, and ,Spur gears,Chain sprockets pitch
Timing pulleys,Involute forms
For pre-finishing
For finishing
Available also unground
Standard bore diameters
20.00 mm
31.745 mm
44.450 mm
Other bore diameters on request
Taper shanks
MT 2
MT 3
Profile modifications
Semi-topping
Protuberance
Topping.protuberance,flat or fillet roots
Modification of pressure angle
Combination of several of the above modifications
Material: High-alloy HSS- steels
Pressure Angle 14 Degree30′,20 Degree,25 Degree,30 Degree,37.5 Degree,4
